Product Description

Overview

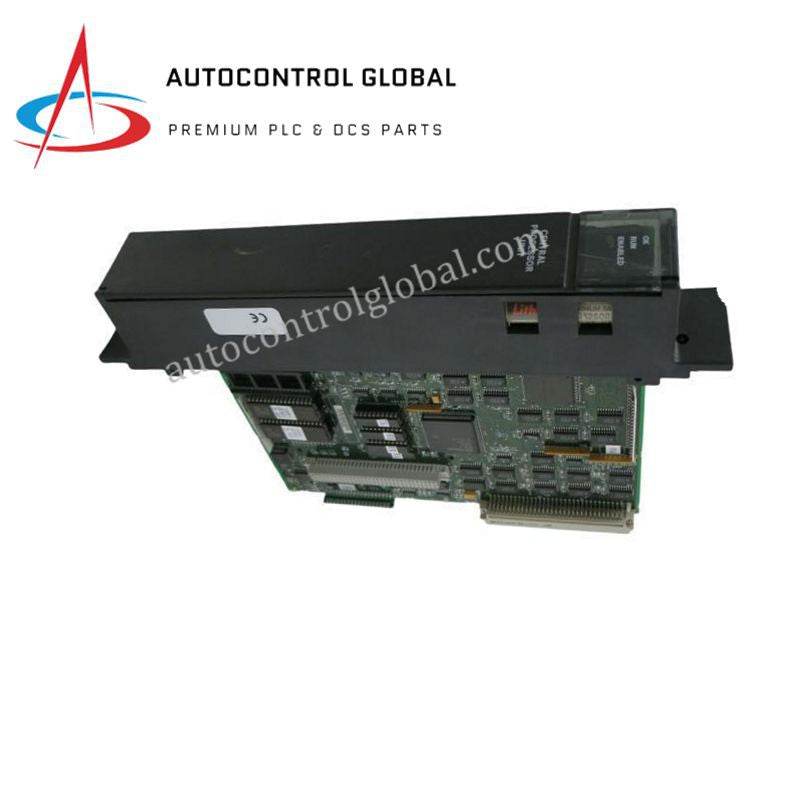

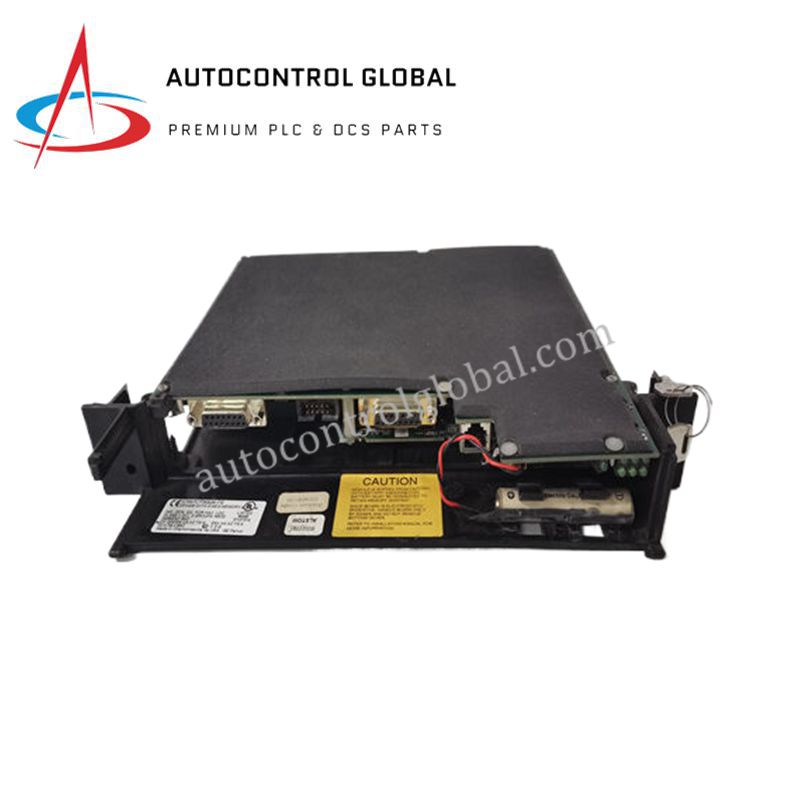

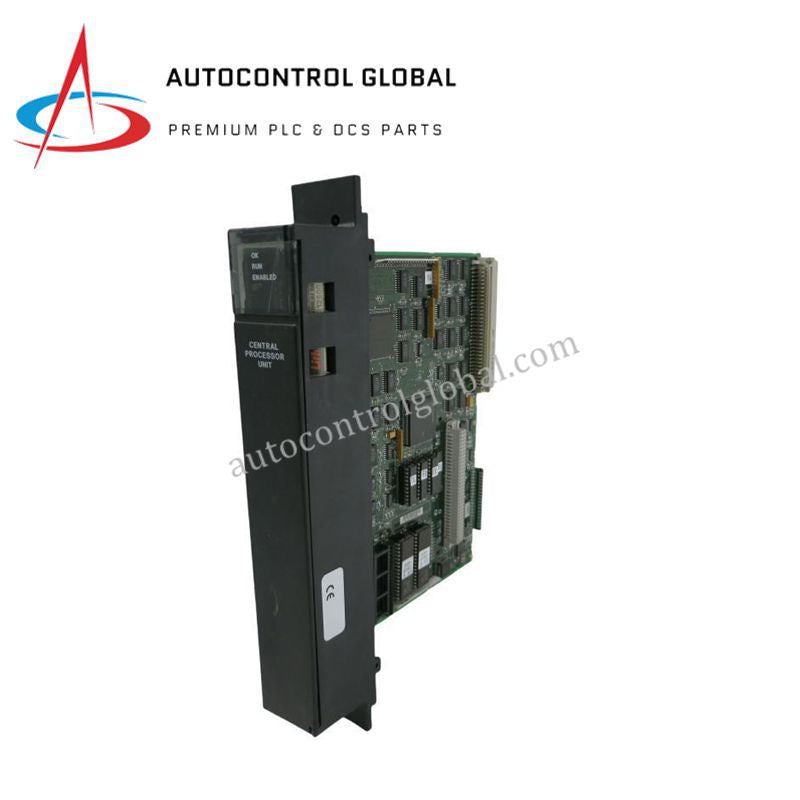

The GE Fanuc IC697CPU731 is a high-performance CPU module for Series 90‑70 PLC systems, designed to deliver reliable and deterministic control. Moreover, its compact single-slot design allows efficient panel installation, making it ideal for medium-scale automation applications in industrial environments.

Technical Specifications

Processor:
• 16-bit control processor
• Operating speed: 12 MHz

Memory:
• Fixed 32 KB user memory
• Supports up to 512 discrete I/O points
• Manages up to 8K analog I/O modules

Communication Interfaces:
• 1 × Serial port for programming and device communication
• Backplane interface for I/O updates and data exchange

Diagnostics & Monitoring:
• Built-in CPU self-diagnostics
• Fault detection and reporting

Physical Specifications:
• Dimensions: 180 × 50 × 105 mm
• Weight: 0.48 kg
• Single-slot compact design

Environmental Ratings:
• Operating temperature: 0 °C to +60 °C
• Storage temperature: –40 °C to +85 °C
• Humidity: 5–95% non-condensing

FAQ

Q1: How many discrete I/O points does the IC697CPU731 support?
A: It supports up to 512 discrete I/O points for medium-scale PLC applications.

Q2: What type of processor is used in this CPU module?
A: The module uses a 16-bit control processor with an operating speed of 12 MHz.

Q3: Is the IC697CPU731 compatible with analog I/O modules?
A: Yes, it supports up to 8K analog I/O modules from the Series 90‑70 family.

Q4: What are the operating temperature limits of this CPU?
A: It operates between 0 °C and +60 °C, with storage up to –40 °C to +85 °C.

Q5: Does the module provide diagnostics?
A: Yes, it includes built-in self-diagnostics for CPU health and fault detection.
